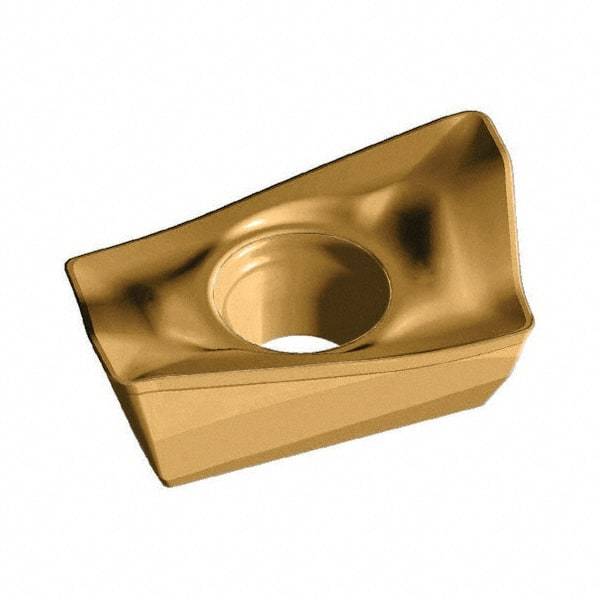

Walter - F56 Grade WKP35G Milling Insert - 7.94mm Thick, 14.5mm Inscribed Circle, 1.2mm Corner Radius
Item #: 47326012
Brand: Walter
Model #: 7170587
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WKP35G |
| Width (mm) | 14.50 |
| Width (Decimal Inch) | 0.5710 |
| Length (mm) | 19.00 |
| Length (Decimal Inch) | 0.7480 |
| Inscribed Circle (mm) | 14.50 |
| Inscribed Circle (Decimal Inch) | 0.5710 |
| Thickness (mm) | 7.94 |
| Thickness (Decimal Inch) | 0.3130 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.20 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Insert Hand | Right Hand |
| Chipbreaker | F56 |
| Maximum Depth of Cut (mm) | 19.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Manufacturers Catalog Number | ADMT180712R-F56 WKP35G |
