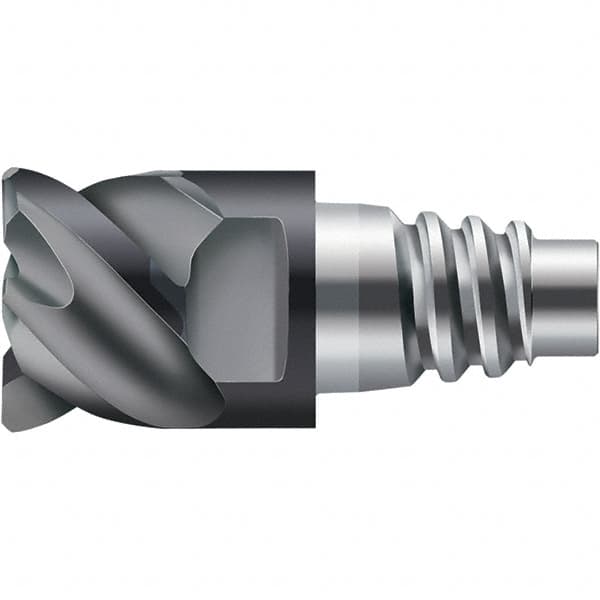

Walter-Prototyp - Grade WJ30TF Carbide Milling Tip Insert - TiAlN Finish, 5 Flutes, 25mm Cutting Diam, 26mm Depth of Cut, 0.039" Cnr Rad, 50° Helix
Item #: 47325600
Brand: Walter-Prototyp
Model #: 7096080
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | MC326-E-P-R |
| Material | Carbide |
| Cutting Diameter (mm) | 25 |
| Cutting Diameter (Decimal Inch) | 0.984 |
| Manufacturer's Grade | WJ30TF |
| Depth of Cut (mm) | 26.00 |
| Depth of Cut (Decimal Inch) | 1.0000 |
| Number of Flutes | 5 |
| Coating | TiAlN |
| Milling Tip Full Description | MC326-25.0E5P100-WJ30TF |
| Corner Radius (Decimal Inch) | 0.039 |
| Chamfer Width (mm) | 0 |
| Helix Angle | 50 |
| Manufacturers Catalog Number | MC326-25.0E5P100-WJ30TF |
| Chamfer Angle | 0 |
