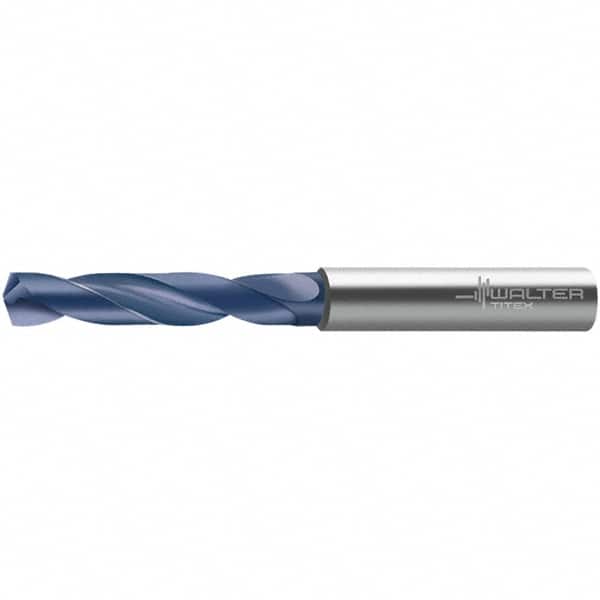

Walter-Titex - 17.8mm 140° Solid Carbide Screw Machine Drill Bit - Right Hand Cut, 73mm Flute Length, 123mm OAL
Item #: 47321724
Brand: Walter-Titex
Model #: 6618198
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.7008 |
| Drill Bit Size (mm) | 17.80 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Flute Length (mm) | 73.00 |
| Flute Length (Decimal Inch) | 2.8740 |
| Overall Length (mm) | 123.00 |
| Overall Length (Decimal Inch) | 4.8430 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 18.00 |
| Shank Diameter (Decimal Inch) | 0.7090 |
| Maximum Drilling Depth (mm) | 51.00 |
| Maximum Drilling Depth (Decimal Inch) | 2.0080 |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 3.24 |
| Drill Point Length (Decimal Inch) | 0.1280 |
| Drill Tip Finish/Coating | TiNAl |
| Through Coolant | No |
| Material Grade | Carbide |
| Series/List | DC150-03-A0 |
