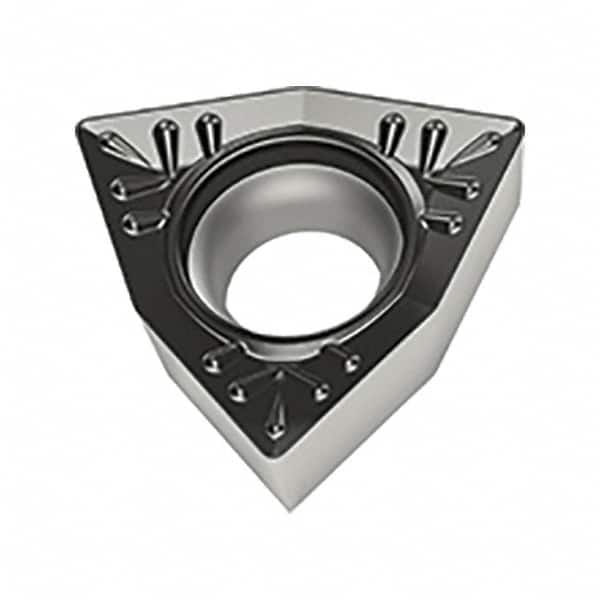

Walter - WCMT RK4 Grade WKK20S Turning Insert - TiCN+Al2O3+(TiCN) Finish, 80° Trigon, 12.7mm Inscr Circle, 4.76mm Thick, 0.4mm Corner Radius
Item #: 47314992
Brand: Walter
Model #: 6651169
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | WCMT |
| Length (mm) | 8.69 |
| Length (Decimal Inch) | 0.3420 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1880 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 0.4 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | WKK20S |
| Coating | TiCN+Al2O3+(TiCN) |
| Chip Breaker | RK4 |
| Insert Length (Decimal Inch) | 0.3420 |
| OverallLength (mm) | 8.69 |
| Overall Length (Decimal Inch) | 0.3420 |
| Insert Length (mm) | 8.6873 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2170 |
| ISO Number | WCMT080404-RK4 WKK20S |
| Relief Angle | 7 |
| Proprietary Coating Designation | WKK20S |
| Coating Process | CVD |
| Manufacturers Catalog Number | 6651169 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | WCMT-RK4 |
| Maximum Depth of Cut (mm) | 8.69 |
| Maximum Depth of Cut (Decimal Inch) | 0.3420 |
| Cutting Width (mm) | 8.69 |
| Shape | Trigon 80 |
