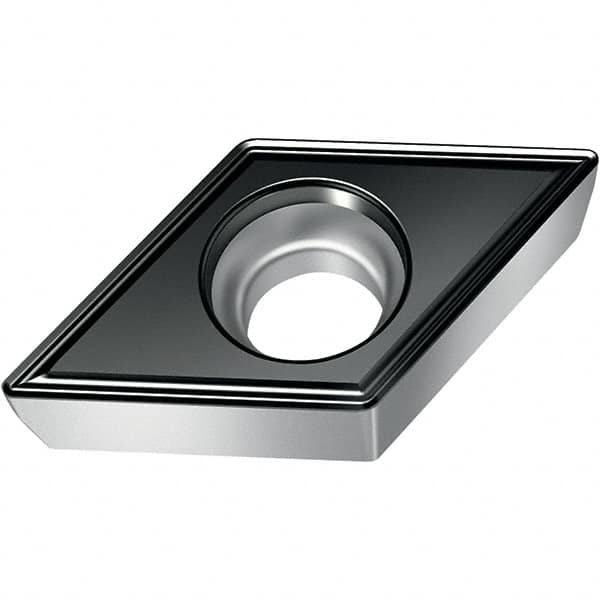

Walter - DCMT FP6 Grade WPP10S Turning Insert - TiCN+Al2O3+(TiCN) Finish, 55° Rhombic, 9.53mm Inscr Circle, 3.97mm Thick, 0.8mm Corner Radius
Item #: 47314497
Brand: Walter
Model #: 6730397
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | DCMT |
| Length (mm) | 11.63 |
| Length (Decimal Inch) | 0.4580 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1560 |
| Thickness (mm) | 3.97 |
| Corner Radius (mm) | 0.8 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | WPP10S |
| Coating | TiCN+Al2O3+(TiCN) |
| Chip Breaker | FP6 |
| Insert Length (Decimal Inch) | 0.4580 |
| OverallLength (mm) | 11.63 |
| Overall Length (Decimal Inch) | 0.4580 |
| Insert Length (mm) | 11.6279 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | DCMT11T308-FP6 WPP10S |
| Relief Angle | 7 |
| Proprietary Coating Designation | WPP10S |
| Coating Process | CVD |
| Manufacturers Catalog Number | 6730397 |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | DCMT-FP6 |
| Maximum Depth of Cut (mm) | 11.63 |
| Maximum Depth of Cut (Decimal Inch) | 0.4580 |
| Cutting Width (mm) | 11.63 |
| Shape | Rhombic 55 |
