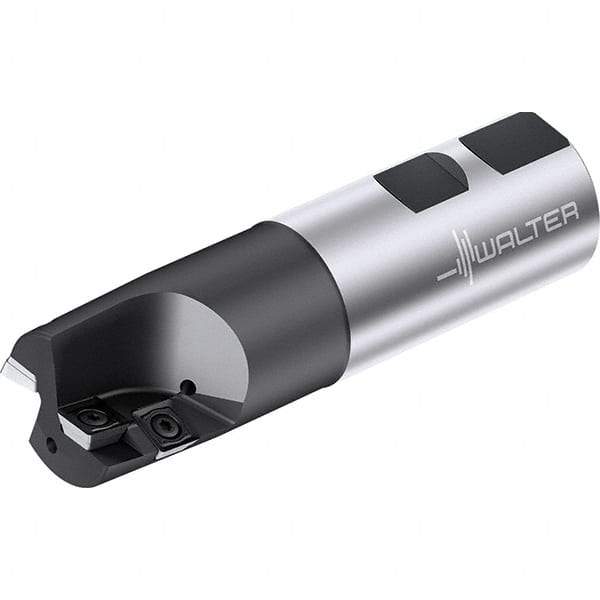

Walter - 17.9mm Cut Diam, 8.3mm Max Depth of Cut, 16mm Shank Diam, 80mm OAL, Indexable Square Shoulder End Mill - Weldon Shank, 0° Lead Angle, Through Coolant, Series M4792-W
Item #: 47304936
Brand: Walter
Model #: 6822365
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 17.90 |
| Cutting Diameter (Decimal Inch) | 0.7050 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Overall Length/Projection (mm) | 80.00 |
| Overall Length/Projection (Decimal Inch) | 3.1500 |
| Lead Angle | 0 |
| Series | M4792-W |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 8.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.327 |
| Number of Cutter Inserts | 1 |
| Number of Flutes | 1 |
| Maximum RPM | 14000 |
| Toolholder Material | Steel |
