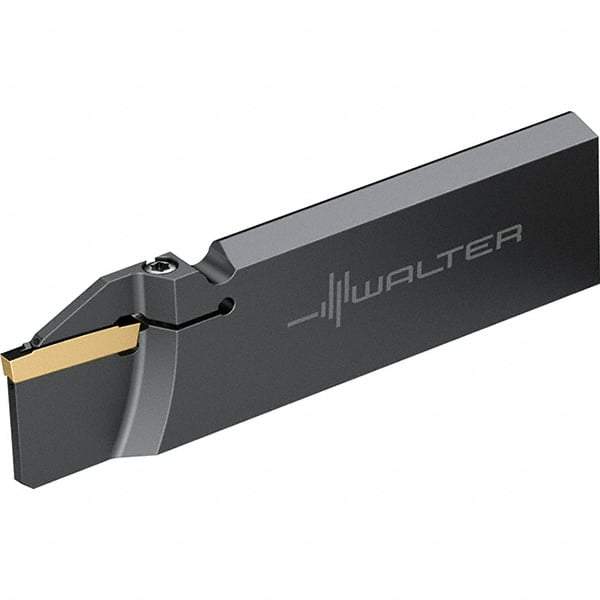

Walter - 1.024" Blade Height, 0.272" Blade Width, 4.331" OAL, Left Hand Cut, Indexable Cut-Off Blade - 23mm Max Depth of Cut, G1041-P Blade, G1041-P Series
Item #: 47302351
Brand: Walter
Model #: 7102142
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0240 |
| Blade Width (mm) | 6.90 |
| Blade Width (Decimal Inch) | 0.2720 |
| Blade Overall Length (mm) | 110.00 |
| Blade Overall Length (Decimal Inch) | 4.3310 |
| Blade Style | G1041-P |
| Series | G1041-P |
| Insert Seat Size | 24 |
| Maximum Workpiece Diameter (Decimal Inch) | 0.0000 |
| Maximum Workpiece Diameter (mm) | 0 |
| Maximum Depth of Cut (mm) | 23.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9060 |
| Cutting Height (mm) | 0.00 |
| Cutting Height (Decimal Inch) | 0.0000 |
| Manufacturers Catalog Number | G1041.26L-3T23GX24-P |
