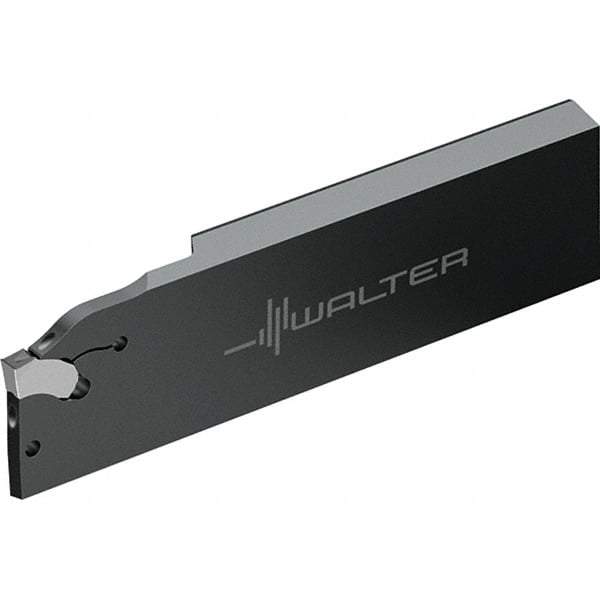

Walter - 0.268" Blade Width, 4.331" OAL, Right Hand Cut, Indexable Cut-Off Blade - 33mm Max Depth of Cut, G2042-CONTRA-P Blade, G2042-CONTRA-P Series
Item #: 47302310
Brand: Walter
Model #: 6641573
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Blade Height (mm) | 0.00 |
| Blade Height (Decimal Inch) | 0.0000 |
| Blade Width (mm) | 6.80 |
| Blade Width (Decimal Inch) | 0.2680 |
| Blade Overall Length (mm) | 110.00 |
| Blade Overall Length (Decimal Inch) | 4.3310 |
| Blade Style | G2042-CONTRA-P |
| Series | G2042-CONTRA-P |
| Insert Seat Size | 0 |
| Maximum Workpiece Diameter (Decimal Inch) | 0.0000 |
| Maximum Workpiece Diameter (mm) | 0 |
| Maximum Depth of Cut (mm) | 33.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.2990 |
| Cutting Height (mm) | 0.00 |
| Cutting Height (Decimal Inch) | 0.0000 |
| Manufacturers Catalog Number | G2042.26R-3T33SX-C-P |
