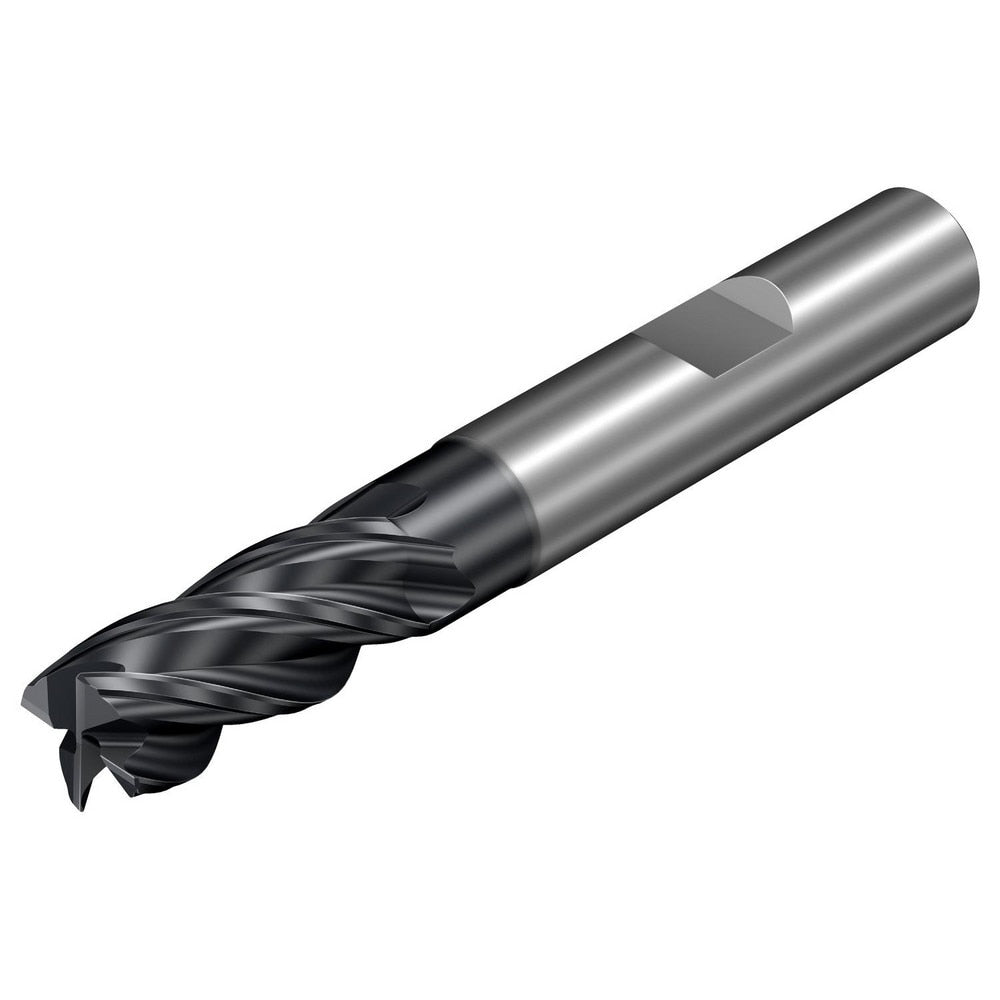

Corner Chamfer End Mill: 6.00 mm Dia, 15.00 mm LOC, 4 Flute, 0.13 mm Chamfer Width, Solid Carbide
Item #: 00997072
Brand: Sandvik Coromant
Model #: 8460300
Product Specifications
| Mill Diameter (Decimal Inch) | 0.2362 |
| Mill Diameter (mm) | 6.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 15.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlCrN |
| Centercutting | Yes |
| Chamfer Width (Decimal Inch) | 0.0051 |
| Cutting Direction | Right Hand |
| Chamfer Width (mm) | 0.13 |
| Overall Length (mm) | 57.00 |
| Coolant Through | No |
| Overall Length (Decimal Inch) | 2.2441 |
| Chipbreaker | No |
| Chamfer Angle | 45.000 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5906 |
| Length Type | Long |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Neck Diameter (mm) | 5.760 |
| Neck Diameter (Decimal Inch) | 0.2268 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Steel |
| UNSPSC Code | 23241614 |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Series | CoroMill Dura |
| Coating Classification | PVD |
| Manufacturers Catalog Number | 1K344-0600-XD 1730 |
