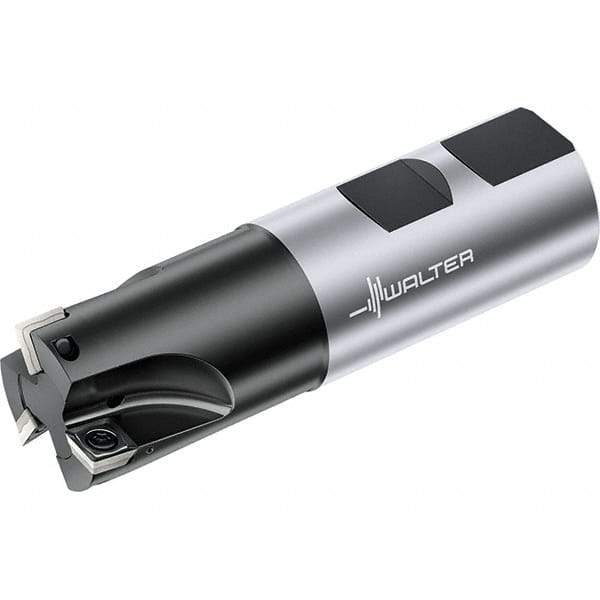

Walter - 16mm Cut Diam, 5.6mm Max Depth of Cut, 16mm Shank Diam, 80mm OAL, Indexable Square Shoulder End Mill - Weldon Shank, 0° Lead Angle, Through Coolant, Series M4132-W
Item #: 47293121
Brand: Walter
Model #: 6741173
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6300 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Overall Length/Projection (mm) | 80.00 |
| Overall Length/Projection (Decimal Inch) | 3.1500 |
| Lead Angle | 0 |
| Series | M4132-W |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 5.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.220 |
| Number of Cutter Inserts | 2 |
| Number of Flutes | 2 |
| Maximum RPM | 31700 |
| Toolholder Material | Steel |
