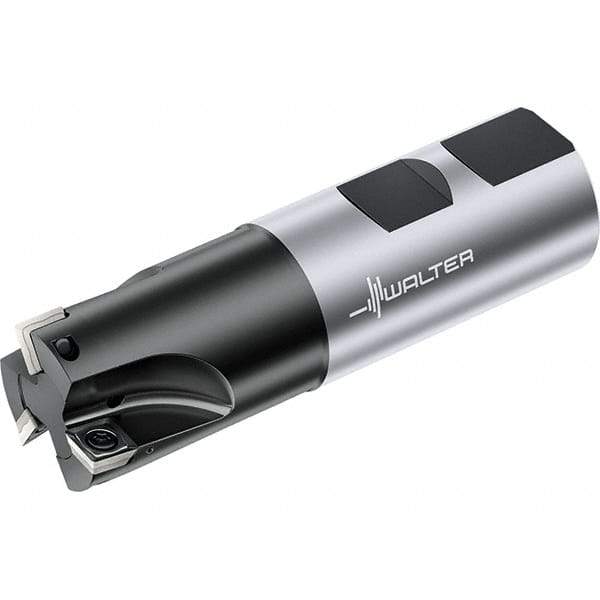

Walter - 20mm Cut Diam, 5.6mm Max Depth of Cut, 20mm Shank Diam, 90mm OAL, Indexable Square Shoulder End Mill - Weldon Shank, 0° Lead Angle, Through Coolant, Series M4132-W
Item #: 47293113
Brand: Walter
Model #: 6741174
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7870 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7870 |
| Overall Length/Projection (mm) | 90.00 |
| Overall Length/Projection (Decimal Inch) | 3.5430 |
| Lead Angle | 0 |
| Series | M4132-W |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 5.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.220 |
| Number of Cutter Inserts | 3 |
| Number of Flutes | 3 |
| Maximum RPM | 28300 |
| Toolholder Material | Steel |
