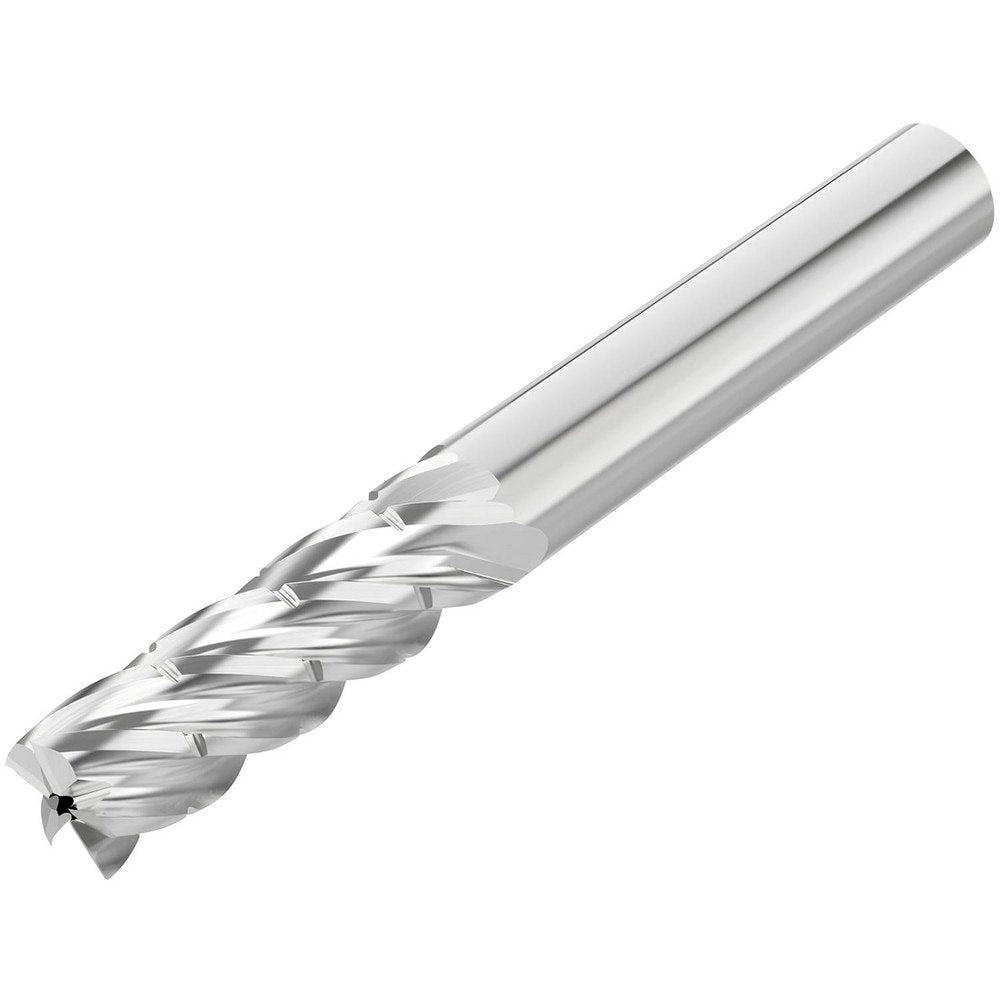

Walter-Prototyp - 16mm, 5 Flute, Solid Carbide, 1mm End Mill - 3.622" OAL, 35° Helix, Right Hand Flute, 32mm LOC, Right Hand Cut
Item #: 47282603
Brand: Walter-Prototyp
Model #: 6826944
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/ZrN is a high performance multilayer specifically developed for machining steel. It's chemically resistant to emulsions and oils and is extremely effective in preventing built up edges.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 16.00 |
| Mill Diameter (Decimal Inch) | 0.6300 |
| Corner Radius (mm) | 1 |
| Corner Radius (Decimal Inch) | 0.039 |
| Number of Flutes | 5 |
| Material | Solid Carbide |
| Finish/Coating | TiAlN/ZrN |
| Length of Cut (mm) | 32.00 |
| Length of Cut (Decimal Inch) | 1.0000 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Inch) | 0.6300 |
| Overall Length (mm) | 92.00 |
| Overall Length (Inch) | 3.6220 |
| Cutting Direction | Right Hand |
| Helix Angle | 35 |
| Chamfer Angle | 0 |
| Flute Direction | Right Hand |
| Series/List | H4137217 |
