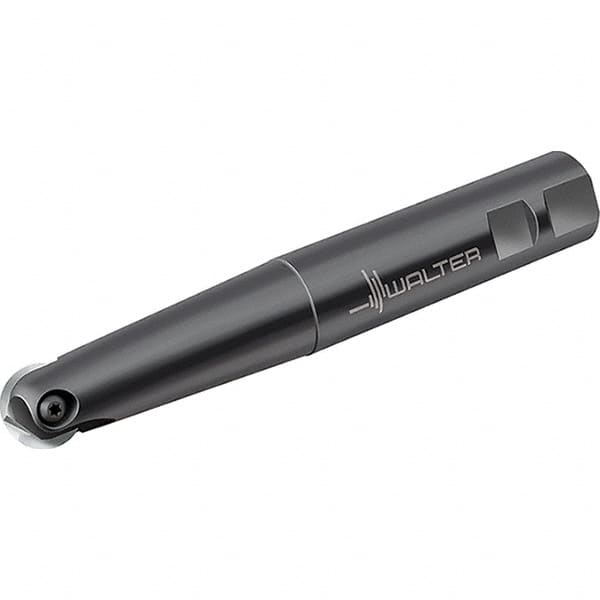

Walter - 20mm Cut Diam, 10mm Max Depth of Cut, 25mm Shank Diam, 190mm OAL, Indexable Ball Nose End Mill - 12,300 Max RPM
Item #: 47277306
Brand: Walter
Model #: 5000980
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20 |
| Cutting Diameter (Decimal Inch) | 0.787 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.984 |
| Series | F2139-W |
| Overall Length (mm) | 190.00 |
| Overall Length (Decimal Inch) | 7.4800 |
| Toolholder Material | Steel |
| Through Coolant | NonThrough Coolant |
| Maximum RPM | 12300 |
