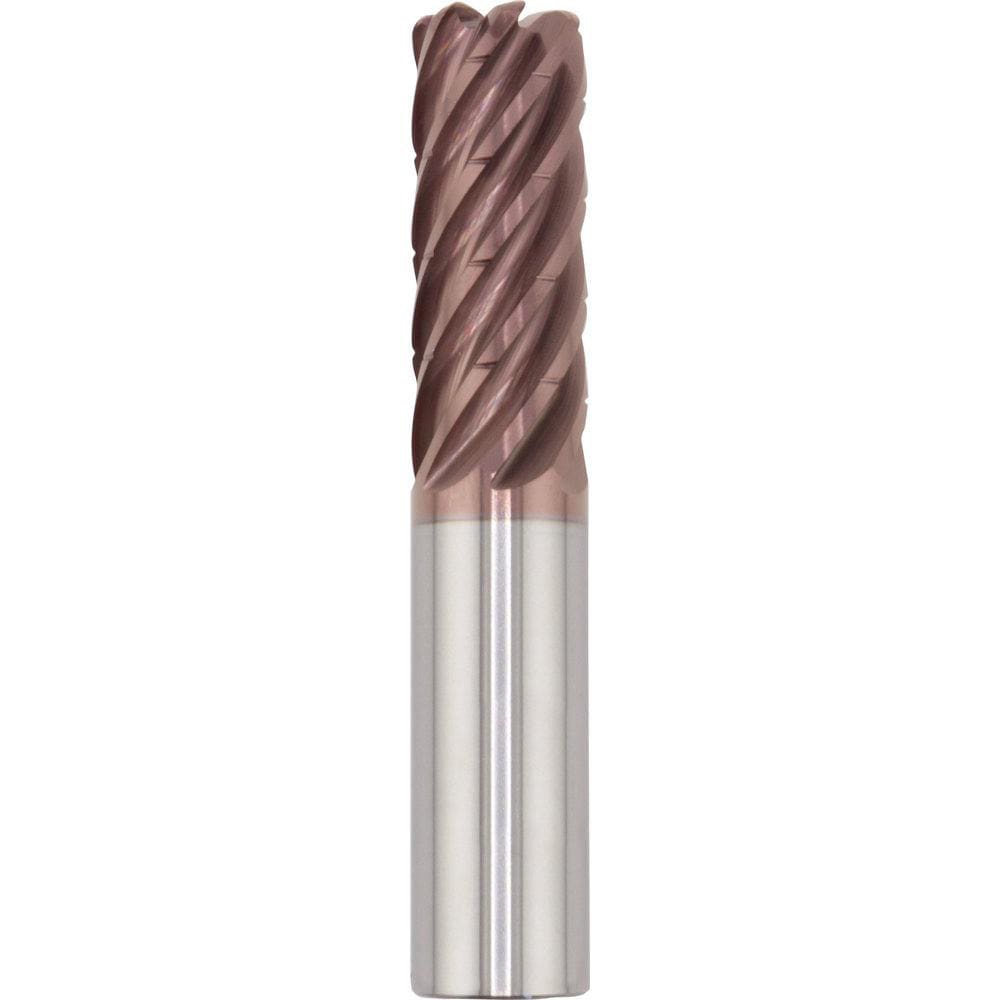

Corner Radius End Mill: 20.00 mm Dia, 80.00 mm LOC, 4.00 mm Radius, 7 Flute, Solid Carbide
Item #: 84669712
Brand: SGS
Model #: 74863
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7874 |
| Mill Diameter (mm) | 20.00 |
| Number Of Flutes | 7 |
| Length of Cut (mm) | 80.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | Yes |
| Coating/Finish | Ti-NAMITE-M |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.1575 |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 4.00 |
| Overall Length (mm) | 140.00 |
| Coolant Through | Yes |
| Overall Length (Decimal Inch) | 5.5120 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 3.1496 |
| Length Type | Extra Long |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Shank Diameter (mm) | 20.00 |
| Corner Radius Tolerance | +0.000/-0.050mm |
| Mill Diameter Tolerance | +0.000/-0.050mm |
| Shank Diameter Tolerance | +0.000/-0.013mm |
| Primary Workpiece Material | Stainless Steel; Cast Iron; High Temperature Alloy; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; K; M |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H |
| Material Grade | Micrograin |
| Series | 77MCR |
| Manufacturers Catalog Number | 74863 |
| Country of Origin | UNITED STATES |
