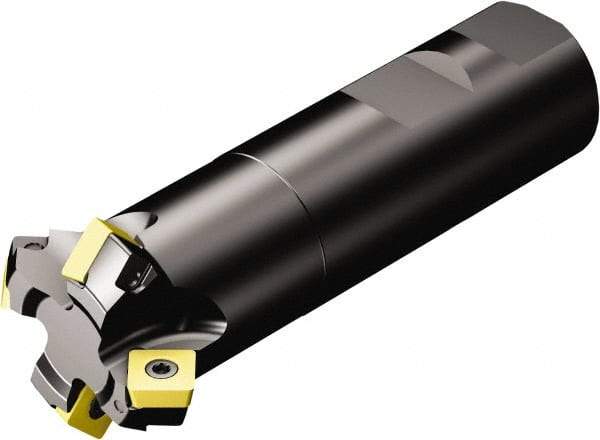

Sandvik Coromant - 0.52" Cut Diam, 5/8" Arbor Hole, 5.47mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 1 Insert, 495-09T3M-XL Insert, Right Hand Cut, Through Coolant, Series CoroMill 495
Item #: 47184304
Brand: Sandvik Coromant
Model #: 6536280
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.5200 |
| Arbor Hole Diameter (Inch) | 5/8 |
| Arbor Hole Diameter (Decimal Inch) | 0.6250 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.8819 |
| Insert Compatibility | 495-09T3M-XL |
| Series | CoroMill 495 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.47 |
| Maximum Depth of Cut (Decimal Inch) | 0.2153 |
| Number of Cutter Inserts | 1 |
| Cutter Style | A495..Mxx |
| Maximum Body Diameter (Decimal Inch) | 0.4891 |
| Maximum RPM | 13600 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 495-09T3M-XL |
| Toolholder Material | Steel |
| Complete Insert Compatibility | 495-09T3M-XL |
| Insert Holding Method | Screw |
| Head Length (mm) | 20.50 |
| Head Length (Decimal Inch) | 0.8070 |
| Overall Length (mm) | 73.20 |
| Overall Length (Decimal Inch) | 2.8820 |
| Number of Flutes | 1 |
| Minimum Cutting Diameter (Decimal Inch) | 0.520 |
| Maximum RPM | 13600 |
| Maximum Cutting Diameter (mm) | 24.61 |
| Maximum Cutting Diameter (Decimal Inch) | 0.969 |
| Included Angle | 45 |
| Minimum Cutting Diameter (mm) | 13.21 |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Shank Length (mm) | 52.70 |
| Shank Length (Decimal Inch) | 2.0748 |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.625 |
| Weldon Flat | Yes |
| Toolholder Style | A495..Mxx |
