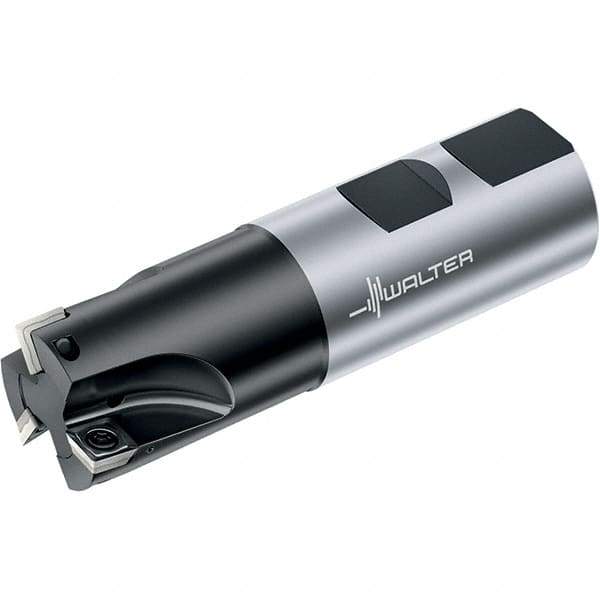

Walter - 24.99mm Cut Diam, 6.5mm Max Depth of Cut, 25mm Shank Diam, 100mm OAL, Indexable Square Shoulder End Mill - SD..09T3.. Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series M4132
Item #: 47089560
Brand: Walter
Model #: 6556143
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 24.99 |
| Cutting Diameter (Decimal Inch) | 0.9840 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length/Projection (mm) | 100.00 |
| Overall Length/Projection (Decimal Inch) | 3.9370 |
| Lead Angle | 90 |
| Series | M4132 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 6.50 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 2 |
| Weldon Flat | Yes |
| Insert Compatibility | SD..09T3.. |
| Toolholder Material | Tool Steel |
