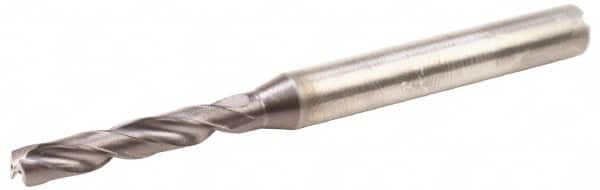

Kennametal - 9mm 180° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 66100207
Brand: Kennametal
Model #: 2652755
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3543 |
| Drill Bit Size (mm) | 9.00 |
| Drill Point Angle | 180 |
| Drill Bit Material | Solid Carbide |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (mm) | 47.00 |
| Overall Length (mm) | 89.00 |
| Point Type | Flat-Bottom |
| Shank Diameter (mm) | 10.00 |
| Specification Designation | DIN |
| Maximum Drilling Depth (mm) | 35.00 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 40.00 |
| Threaded Shank | No |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.006 to +0.021 |
| Specification Number | DIN 6537K |
| Web Thinning | Web-Thinned |
| Series/List | B707FBG |
