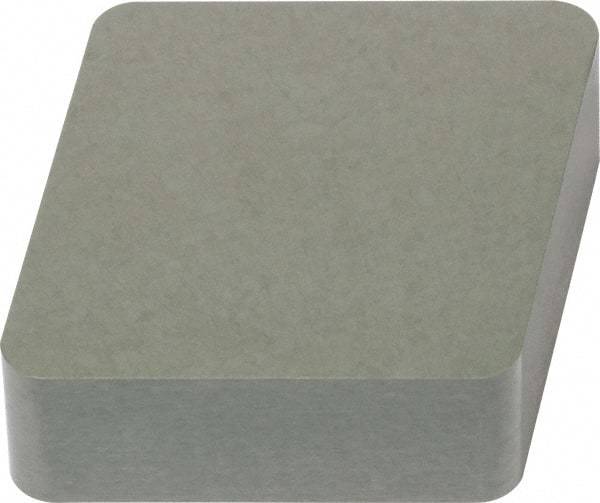

Walter - CNGN432 NONE Grade WWS20 Ceramic Turning Insert - 80° Parallelogram, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 47053996
Brand: Walter
Model #: 6606657
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | CNGN |
| Insert Size | 432 |
| Material | Ceramic |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | WWS20 |
| Chip Breaker | None |
| Insert Length (Decimal Inch) | 0.5077 |
| Relief Angle | 0 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Shape | Parallelogram |
