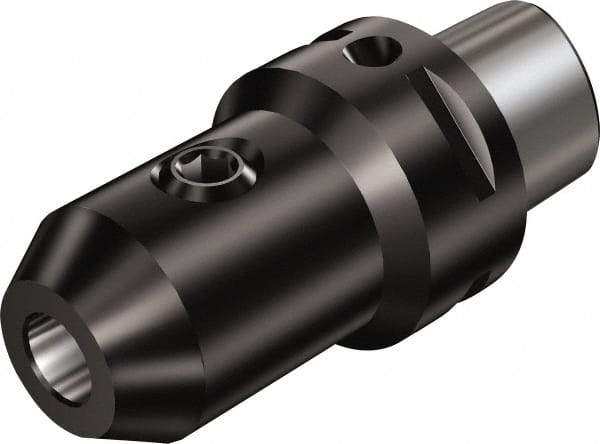

Sandvik Coromant - C4 Outside Modular Connection, 1/2" Hole Diam, Capto to Weldon Straight Shank Adapter - 56mm Projection, 23mm Nose Diam, 80mm OAL, Through Coolant
Item #: 47043484
Brand: Sandvik Coromant
Model #: 5727288
Exact Tooling IR#: 04
Features and Benefits
Straight shank adapters are used for holding straight shank tools in a tapered machine spindle.
| Product Specifications | |
|---|---|
| Type | Straight Shank Adapter |
| Taper Adapter Type | Capto to Weldon |
| Outside Modular Connection Size | C4 |
| Hole Diameter (Inch) | 1/2 |
| Hole Diameter (Decimal Inch) | 0.5000 |
| Projection (Decimal Inch) | 2.2047 |
| Projection (mm) | 56.00 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 0.9055 |
| Nose Diameter (mm) | 23.00 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Collar Diameter (Decimal Inch) | 1.5748 |
