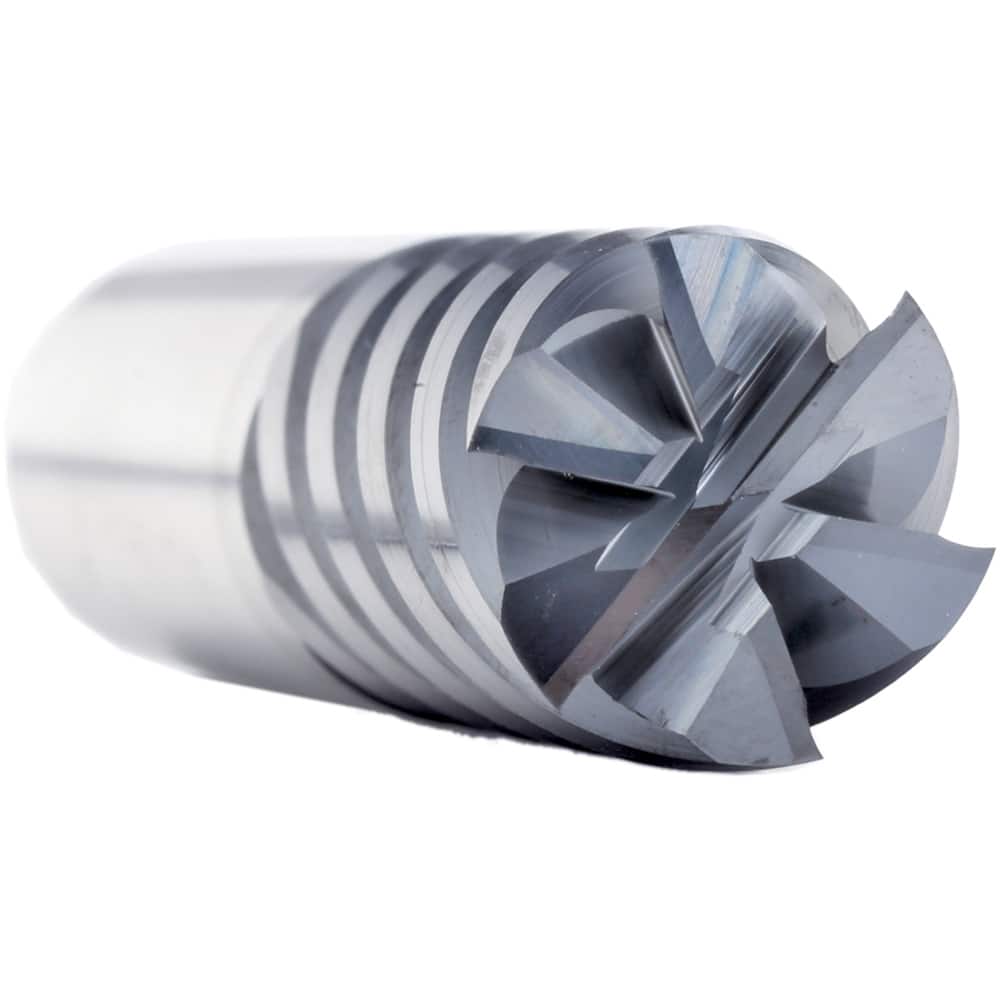

Supermill - Square End Mills Mill Diameter (Inch): 1/2 Mill Diameter (Decimal Inch): 0.5000
Item #: 30647747
Brand: Supermill
Model #: SM6F500XLA
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum titanium nitride (AlTiN) is one of the most abrasive resistant and hardest coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
Product Specifications
Square End Mills; Mill Diameter (Inch): 1/2 ; Mill Diameter (Decimal Inch): 0.5000 ; Number of Flutes: 6 ; Length of Cut (Inch): 3 ; Length of Cut (Decimal Inch): 3.0000 ; Material: Solid Carbide
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number of Flutes | 6 |
| Length of Cut (Inch) | 3 |
| Length of Cut (Decimal Inch) | 3.0000 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Shank Diameter (Inch) | 1/2 |
| Single or Double End | Single |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.00000 |
| Center Cutting | Center Cutting |
| Cutting Direction | Right Hand |
| Helix Angle | 45 |
| Variable Helix | No |
| Variable Index | Yes |
| Material Grade | Micrograin |
| Chipbreaker | No |
| Series/List | SM6F-NB |
