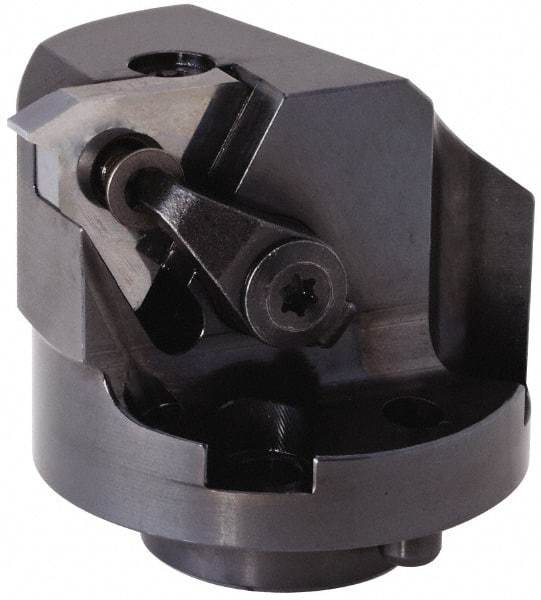

Kennametal - Insert Style LT 27NR, 41.28mm Head Length, Right Hand Cut, Internal Modular Threading Cutting Unit Head - System Size H40, 38.89mm Center to Cutting Edge, Series LT Threading
Item #: 46889333
Brand: Kennametal
Model #: 3842897
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | H40 |
| Series Name | LT Threading |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Center to Cutting Edge (mm) | 38.89 |
| Center to Cutting Edge (Decimal Inch) | 1.5310 |
| Head Length/Projection (mm) | 41.28 |
| Head Length/Projection (Decimal Inch) | 1.6250 |
| Insert Style | LT 27NR |
| Insert Holding Method | Clamp; Screw |
| Toolholder Material | Steel |
| Neck Diameter (mm) | 63.50 |
| Neck Diameter (Decimal Inch) | 2.5000 |
| Minimum Hole Diameter (mm) | 76.96 |
| Minimum Hole Diameter (Decimal Inch) | 3.0300 |
| Axial Rake Angle | -1.5 |
| Radial Rake Angle | -15 |
