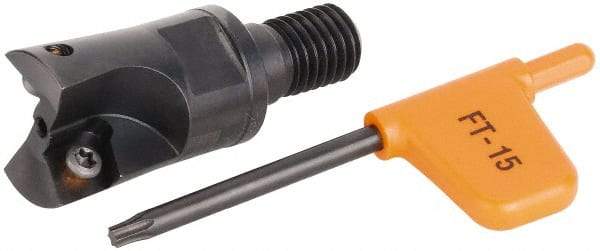

Kennametal - 12mm Cut Diam, 2.5mm Max Depth of Cut, 25mm OAL, Indexable Square Shoulder Helical End Mill - XD.. 0401.. Inserts, M8 Modular Connection, Series KMM
Item #: 46889069
Brand: Kennametal
Model #: 1888441
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Shank Type | Modular Connection |
| Modular Connection Size | M8 |
| Overall Length/Projection (mm) | 25.00 |
| Overall Length/Projection (Decimal Inch) | 0.9843 |
| Series | KMM |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 12.00 |
| Minimum Cutting Diameter (Decimal Inch) | 0.4724 |
| Head Length (mm) | 25.00 |
| Head Length (Decimal Inch) | 0.9843 |
| Insert Compatibility | XD.. 0401.. |
| Shank Length (Decimal Inch) | 0.6969 |
| Shank Length (mm) | 17.70 |
