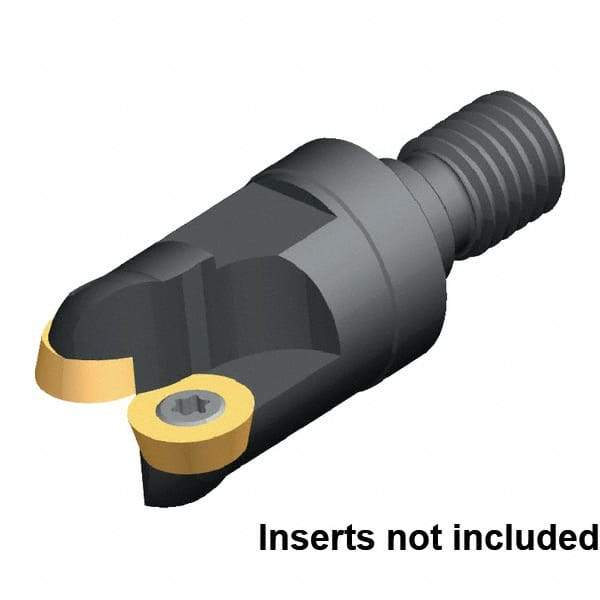

Kennametal - 25mm Cutting Diam, 63/64" Max Depth of Cut, Modular Connection Indexable Copy End Mill - 2 Inserts, RD.X 1003.. Insert
Item #: 46887550
Brand: Kennametal
Model #: 1888416
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M12 |
| Number of Cutter Inserts | 2 |
| Insert Style | RD.X 1003.. |
| Series | KDM |
| Overall Length (mm) | 35.00 |
| Overall Length (Decimal Inch) | 1.3780 |
| Insert Diameter (mm) | 10.00 |
| Insert Diameter (Decimal Inch) | 0.3937 |
| Insert Holding Method | Screw |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 15.00 |
| Head Length (mm) | 35.00 |
| Head Length (Decimal Inch) | 1.3780 |
| Maximum Cutting Diameter (Decimal Inch) | 0.9843 |
| Modular Connection Size | M12 |
