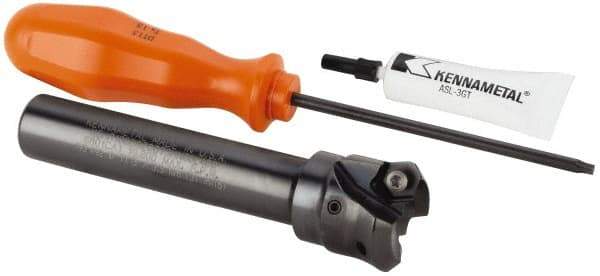

Kennametal - 45° Lead Angle, 33.58mm Max Cut Diam, 1" Min Cut Diam, 3.23mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 2 Inserts, HNGJ 0604ANENLD Insert Style, 121.92mm Overall Length, Through Coolant, Straight Shank
Item #: 46886180
Brand: Kennametal
Model #: 4130518
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Inch) | 1 |
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Minimum Cutting Diameter (mm) | 25.40 |
| Maximum Cutting Diameter (mm) | 33.58 |
| Maximum Cutting Diameter (Decimal Inch) | 1.3220 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 45 |
| Overall Length (mm) | 121.92 |
| Overall Length (Decimal Inch) | 4.8000 |
| Insert Style | HNGJ 0604ANENLD |
| Series | Dodeka Mini |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.1270 |
| Maximum Depth of Cut (mm) | 3.23 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Toolholder Style | KSHR |
| Number of Flutes | 2 |
| Head Length (mm) | 31.75 |
| Head Length (Decimal Inch) | 1.2500 |
| Weldon Flat | No |
| Shank Length (mm) | 90.17 |
| Shank Length (Decimal Inch) | 3.5500 |
| Maximum RPM | 19800 |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
