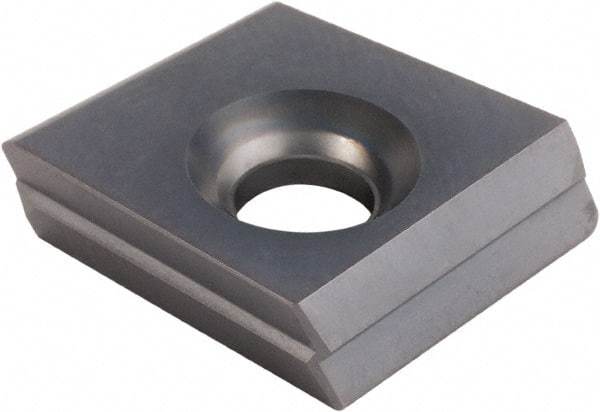

Kennametal - C2FIX180610 MN Grade KCU10 Carbide Turning Insert - AlTiN Finish, Irregular, 6mm Thick, 1mm Corner Radius
Item #: 46885026
Brand: Kennametal
Model #: 4051115
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | C2FIX |
| Insert Size | 180610 |
| Material | Carbide |
| Length (mm) | 17.50 |
| Length (Decimal Inch) | 0.6890 |
| Thickness (Decimal Inch) | 0.2362 |
| Thickness (mm) | 6.00 |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Chip Breaker | MN |
| Hole Diameter (mm) | 6.10 |
| Hole Diameter (Decimal Inch) | 0.2401 |
| ISO Number | C2FIX180610LMN |
| Rake | Negative |
| Rake Angle | 20 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | Fix-Perfect |
| Insert Holding Method | Pin |
| Shape | Irregular |
