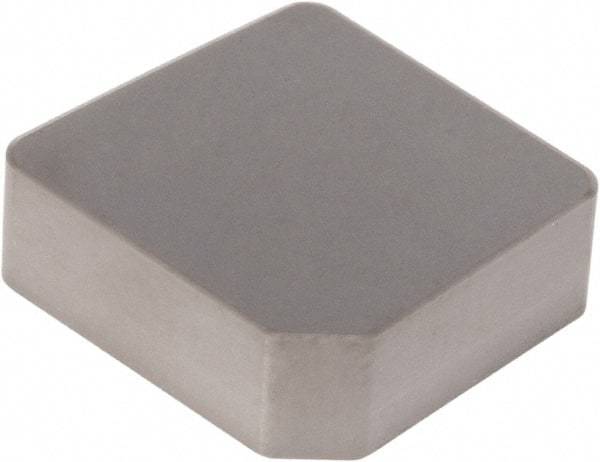

Kennametal - XNXF43 Grade KY3500 Ceramic Milling Insert - Uncoated, 3/16" Thick, 1/2" Inscribed Circle, 3/64" Corner Radius
Item #: 46884821
Brand: Kennametal
Model #: 4061407
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | XNXF |
| Insert Size | 43 |
| Material | Ceramic |
| Material Grade | Micrograin |
| Manufacturer's Grade | KY3500 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.5000 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Corner Radius (mm) | 1.19 |
| Relief Angle | 0.000 |
| Shape | Irregular |
| Insert Hand | Neutral |
| ISO Number | XNXF1204ZNENW |
