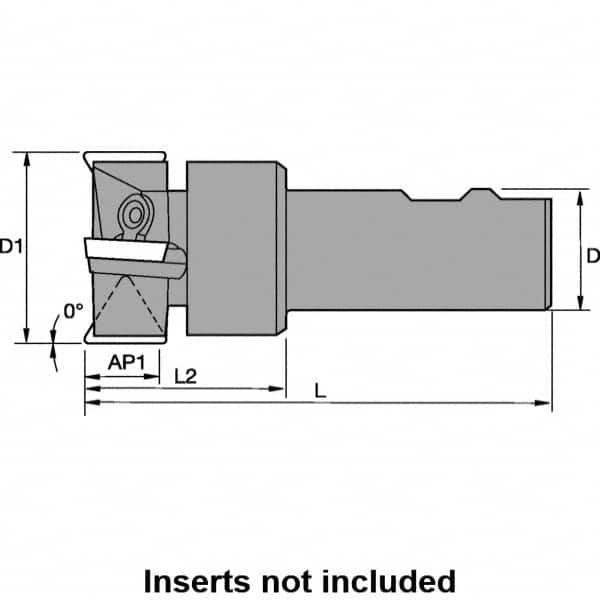

Kennametal - 1" Cut Diam, 24.38mm Max Depth of Cut, 3/4" Shank Diam, 87.71mm OAL, Indexable Square Shoulder End Mill - AEC 2422 Inserts, Weldon Shank, 0° Lead Angle
Item #: 46884573
Brand: Kennametal
Model #: 1023612
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (mm) | 87.71 |
| Overall Length/Projection (Decimal Inch) | 3.4530 |
| Lead Angle | 0 |
| Maximum Depth of Cut (mm) | 24.38 |
| Maximum Depth of Cut (Decimal Inch) | 0.9600 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Wedge |
| End Mill Type | End Mill |
| Cutter Style | KIPR |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.1720 |
| Insert Compatibility | AEC 2422 |
| Shank Length (Decimal Inch) | 2.0300 |
| Shank Length (mm) | 51.56 |
