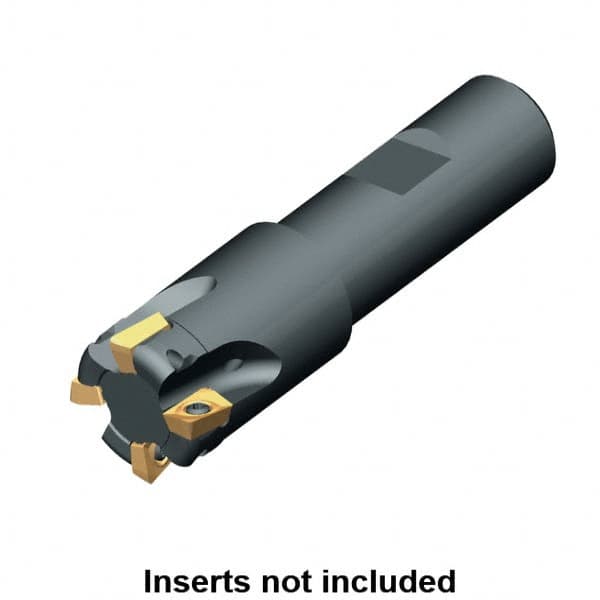

Kennametal - 18mm Cut Diam, 9.14mm Max Depth of Cut, 20mm Shank Diam, 82mm OAL, Indexable Square Shoulder End Mill - ADKT 1035.. Inserts, Weldon Shank, 0° Lead Angle, Series NGE-A
Item #: 46871240
Brand: Kennametal
Model #: 1024374
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 18.00 |
| Cutting Diameter (Decimal Inch) | 0.7087 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length/Projection (mm) | 82.00 |
| Overall Length/Projection (Decimal Inch) | 3.2283 |
| Lead Angle | 0 |
| Series | NGE-A |
| Maximum Depth of Cut (mm) | 9.14 |
| Maximum Depth of Cut (Decimal Inch) | 0.3600 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 2 |
| Head Length (mm) | 31.00 |
| Weldon Flat | Yes |
| Insert Compatibility | ADKT 1035.. |
| Shank Length (Decimal Inch) | 2.0079 |
| Shank Length (mm) | 51.00 |
| Maximum RPM | 15200 |
