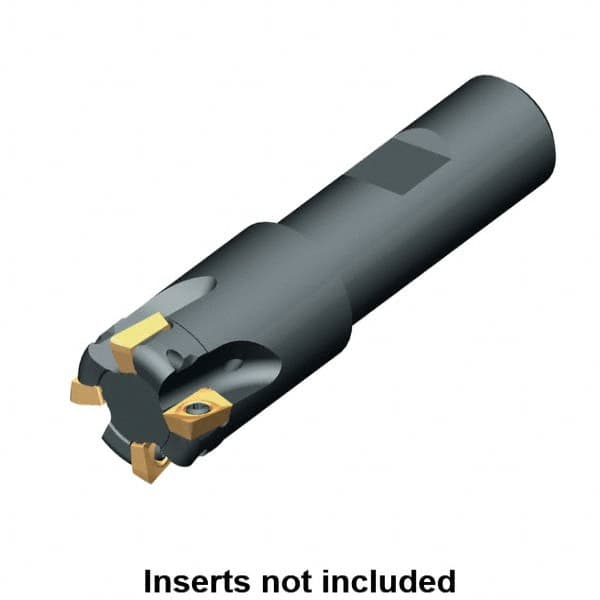

Kennametal - 22mm Cut Diam, 9.14mm Max Depth of Cut, 25mm Shank Diam, 96mm OAL, Indexable Square Shoulder End Mill - ADKT 1035.. Inserts, Weldon Shank, 90° Lead Angle, Series NGE-A
Item #: 46871224
Brand: Kennametal
Model #: 1024376
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 22.00 |
| Cutting Diameter (Decimal Inch) | 0.8661 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length/Projection (mm) | 96.00 |
| Overall Length/Projection (Decimal Inch) | 3.7795 |
| Lead Angle | 90 |
| Series | NGE-A |
| Maximum Depth of Cut (mm) | 9.14 |
| Maximum Depth of Cut (Decimal Inch) | 0.3600 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 3 |
| Head Length (mm) | 39.00 |
| Weldon Flat | Yes |
| Insert Compatibility | ADKT 1035.. |
| Shank Length (Decimal Inch) | 2.2441 |
| Shank Length (mm) | 57.00 |
| Maximum RPM | 13750 |
