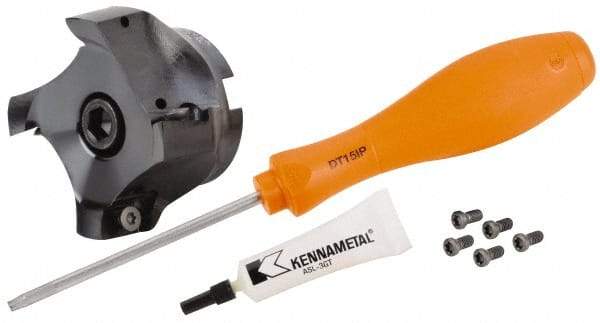

Kennametal - 1-1/2" Cut Diam, 17.88mm Max Depth of Cut, 1-1/4" Shank Diam, 10" OAL, Indexable Square Shoulder End Mill - E.. 18.. Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant, Series Mill 1-18
Item #: 46871034
Brand: Kennametal
Model #: 5194531
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 38.10 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 10.0000 |
| Lead Angle | 0 |
| Series | Mill 1-18 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 17.88 |
| Maximum Depth of Cut (Decimal Inch) | 0.7040 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 3 |
| Weldon Flat | No |
| Insert Compatibility | E.. 18.. |
| Coolant Hole Diameter (Decimal Inch) | 0.2500 |
