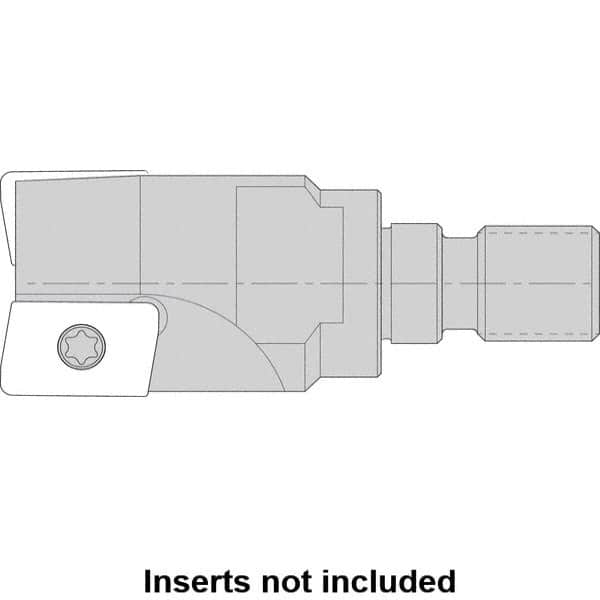

Kennametal - 20mm Cut Diam, 8.5mm Max Depth of Cut, 31.19mm OAL, Indexable Square Shoulder Helical End Mill - AD.. 1035.. Inserts, M10 Modular Connection, 0° Lead Angle, Series NGE-A
Item #: 46870929
Brand: Kennametal
Model #: 1888427
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Shank Type | Modular Connection |
| Modular Connection Size | M10 |
| Overall Length/Projection (mm) | 31.19 |
| Lead Angle | 0 |
| Series | NGE-A |
| Maximum Depth of Cut (mm) | 8.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.3346 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 3 |
| Head Length (mm) | 31.19 |
| Insert Compatibility | AD.. 1035.. |
| Shank Length (Decimal Inch) | 0.7874 |
| Shank Length (mm) | 20.00 |
| Maximum RPM | 14500 |
