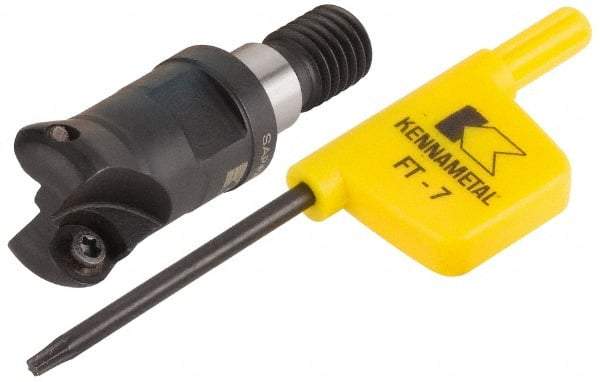

Kennametal - 12.7mm Cutting Diam, 1/2" Max Depth of Cut, Modular Connection Indexable Copy End Mill - 2 Inserts, RDHX 07T1M0S Insert, KDM Toolholder
Item #: 46869814
Brand: Kennametal
Model #: 2511327
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.70 |
| Cutting Diameter (Inch) | 1/2 |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M8 |
| Number of Cutter Inserts | 2 |
| Insert Style | RDHX 07T1M0S |
| Toolholder Style | KDM |
| Series | KDM |
| Overall Length (mm) | 28.00 |
| Overall Length (Decimal Inch) | 1.1024 |
| Insert Holding Method | Screw |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 5.69 |
| Head Length (mm) | 28.00 |
| Head Length (Decimal Inch) | 1.1024 |
| Maximum Cutting Diameter (Decimal Inch) | 0.5000 |
| Modular Connection Size | M8 |
