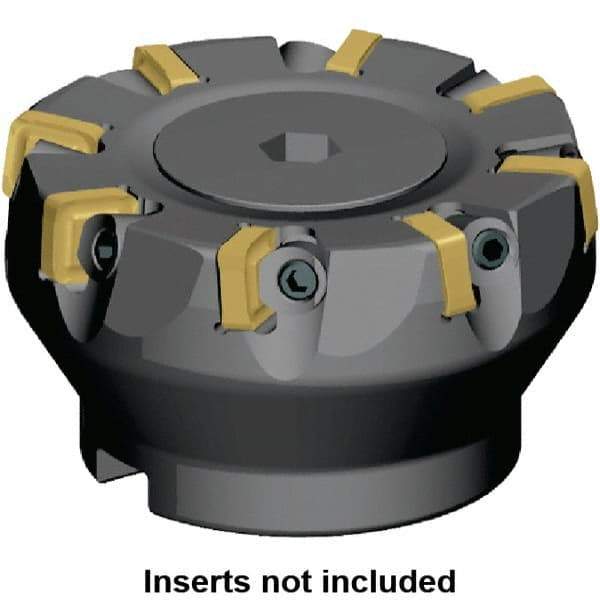

Kennametal - 102mm Cut Diam, 32mm Arbor Hole, 5mm Max Depth of Cut, 6° Indexable Chamfer & Angle Face Mill - 10 Inserts, SNXF 1204... Insert, Right Hand Cut, 10 Flutes, Series KSSR
Item #: 46869319
Brand: Kennametal
Model #: 3120845
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 102.00 |
| Cutting Diameter (Decimal Inch) | 4.0157 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 6 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | SNXF 1204... |
| Series | KSSR |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Wedge |
| Cutter Style | KSSR |
| Number of Flutes | 10 |
| Hub Diameter (Decimal Inch) | 3.0710 |
| Hub Diameter (mm) | 78.00 |
| Maximum Body Diameter (Decimal Inch) | 3.8800 |
| Maximum RPM | 4800 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | SNXF 1204ZNSNGP |
