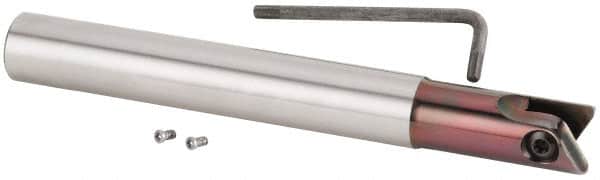

Kennametal - 3/4" Cutting Diam, 3/4" Shank Diam, 3/4" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 1 Insert, KDMT 0750.. Insert, KDMT Toolholder
Item #: 46868329
Brand: Kennametal
Model #: 2958143
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 19.05 |
| Cutting Diameter (Inch) | 3/4 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Cutter Inserts | 1 |
| Insert Style | KDMT 0750.. |
| Toolholder Style | KDMT |
| Series | KDMT |
| Overall Length (mm) | 210.06 |
| Overall Length (Decimal Inch) | 8.2700 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 59.99 |
| Head Length (Decimal Inch) | 2.3620 |
| Shank Length (mm) | 150.06 |
| Shank Length (Decimal Inch) | 5.9078 |
| Maximum RPM | 40000 |
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
