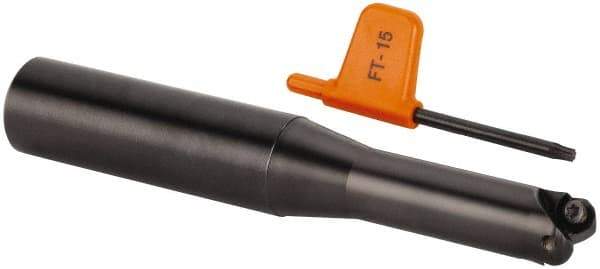

Kennametal - 15mm Cutting Diam, 20mm Shank Diam, 0.5906" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 2 Inserts, RD.X 0702.. Insert
Item #: 46868295
Brand: Kennametal
Model #: 1888465
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 15.00 |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Number of Cutter Inserts | 2 |
| Insert Style | RD.X 0702.. |
| Series | KDM |
| Overall Length (mm) | 152.00 |
| Overall Length (Decimal Inch) | 5.9843 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 8.00 |
| Head Length (mm) | 100.00 |
| Head Length (Decimal Inch) | 3.9370 |
| Shank Length (mm) | 52.00 |
| Shank Length (Decimal Inch) | 2.0472 |
| Maximum Cutting Diameter (Decimal Inch) | 0.5906 |
