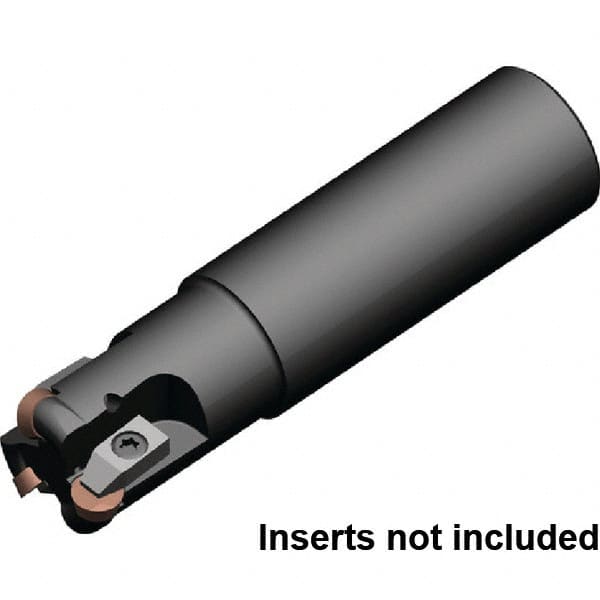

Kennametal - 16mm Cutting Diam, 16mm Shank Diam, 0.6299" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 2 Inserts, RP.N 0602.. Insert, KIPR Toolholder, Through Coolant
Item #: 46866414
Brand: Kennametal
Model #: 3617418
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Maximum Depth of Cut (mm) | 3.17 |
| Maximum Depth of Cut (Decimal Inch) | 0.1250 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Number of Cutter Inserts | 2 |
| Insert Style | RP.N 0602.. |
| Toolholder Style | KIPR |
| Series | KIPR |
| Overall Length (mm) | 75.00 |
| Overall Length (Decimal Inch) | 2.9528 |
| Insert Holding Method | Clamp |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 9.65 |
| Head Length (mm) | 26.00 |
| Head Length (Decimal Inch) | 1.0236 |
| Shank Length (mm) | 49.00 |
| Shank Length (Decimal Inch) | 1.9291 |
| Maximum RPM | 37260 |
| Maximum Cutting Diameter (Decimal Inch) | 0.6299 |
