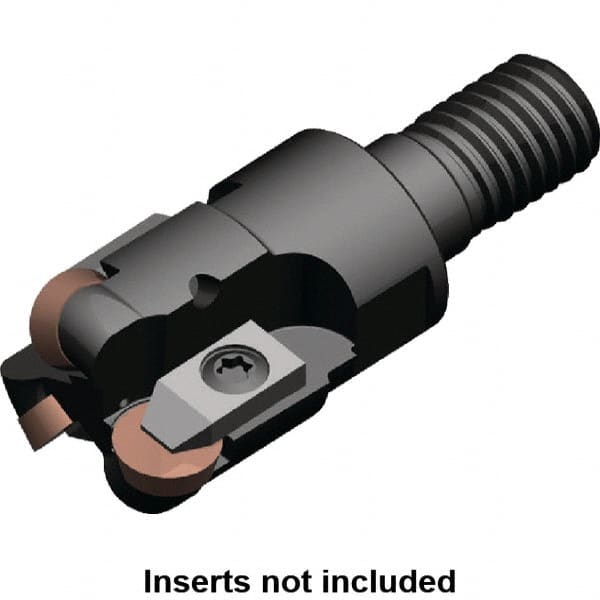

Kennametal - 20mm Cutting Diam, 0.7874" Max Depth of Cut, Modular Connection Indexable Copy End Mill - 2 Inserts, RP.N 0903.. Insert, KIPR Toolholder, Through Coolant
Item #: 46866380
Brand: Kennametal
Model #: 4052782
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Maximum Depth of Cut (mm) | 4.76 |
| Maximum Depth of Cut (Decimal Inch) | 0.1874 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M10 |
| Number of Cutter Inserts | 2 |
| Insert Style | RP.N 0903.. |
| Toolholder Style | KIPR |
| Series | KIPR |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1811 |
| Insert Diameter (mm) | 9.53 |
| Insert Diameter (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Through Coolant | Through Coolant |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 10.50 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Maximum RPM | 23040 |
| Maximum Cutting Diameter (Decimal Inch) | 0.7874 |
| Modular Connection Size | M10 |
