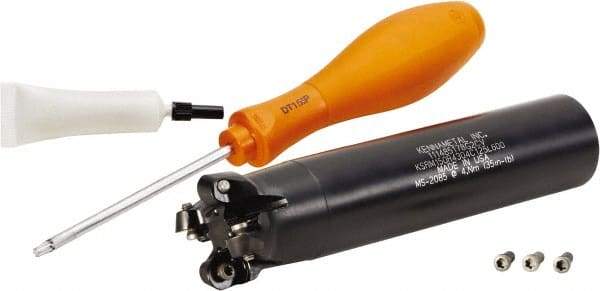

Kennametal - 35mm Cutting Diam, 32mm Shank Diam, 1.378" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 4 Inserts, RP.T 1204M0.. Insert, Through Coolant
Item #: 46866364
Brand: Kennametal
Model #: 4177052
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 35.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Number of Cutter Inserts | 4 |
| Insert Style | RP.T 1204M0.. |
| Series | KSRM |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (mm) | 23.00 |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Shank Length (mm) | 150.00 |
| Shank Length (Decimal Inch) | 5.9055 |
| Maximum RPM | 41400 |
| Maximum Cutting Diameter (Decimal Inch) | 1.3780 |
