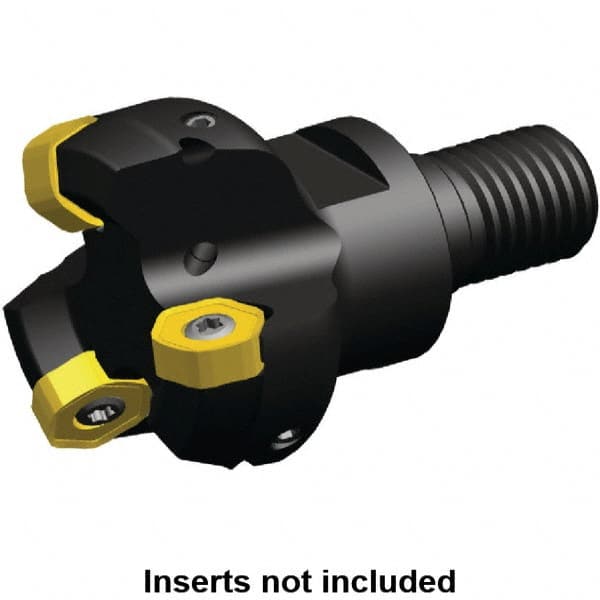

Kennametal - 25mm Cut Diam, 0.064" Max Depth, M16 Modular Connection Indexable High-Feed End Mill - Screw Holding Method, HNGJ0604ANENLD Insert, KSHR Toolholder, Through Coolant
Item #: 46865887
Brand: Kennametal
Model #: 4153687
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9840 |
| Maximum Depth of Cut (Decimal Inch) | 0.0640 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Number of Cutter Inserts | 3 |
| Insert Style | HNGJ0604ANENLD |
| Toolholder Style | KSHR |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Decimal Inch) | 0.9840 |
| Maximum RPM | 20000 |
| Through Coolant | Through Coolant |
| Maximum Cutting Diameter (Decimal Inch) | 1.5020 |
| Overall Length (Decimal Inch) | 1.2600 |
