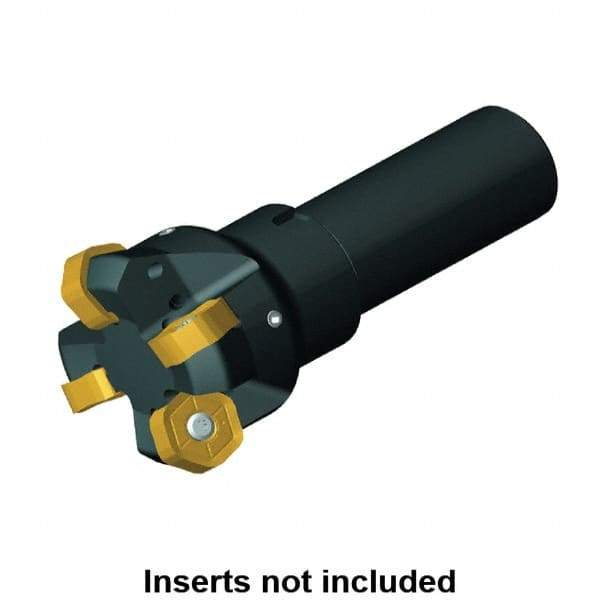

Kennametal - 45° Lead Angle, 51mm Max Cut Diam, 40mm Min Cut Diam, 4.5mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 4 Inserts, HNGJ 0905ANENLD Insert Style, 107mm Overall Length, Through Coolant, Straight Shank
Item #: 46865739
Brand: Kennametal
Model #: 3645083
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 1.5748 |
| Minimum Cutting Diameter (mm) | 40.00 |
| Maximum Cutting Diameter (mm) | 51.00 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0080 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Lead Angle | 45 |
| Overall Length (mm) | 107.00 |
| Overall Length (Decimal Inch) | 4.2126 |
| Insert Style | HNGJ 0905ANENLD |
| Series | Dodeka |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Maximum Depth of Cut (mm) | 4.50 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Toolholder Style | KSHR |
| Number of Flutes | 4 |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Weldon Flat | No |
| Shank Length (mm) | 57.00 |
| Shank Length (Decimal Inch) | 2.2441 |
| Maximum RPM | 15800 |
| Coolant Hole Diameter (mm) | 6.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.2362 |
