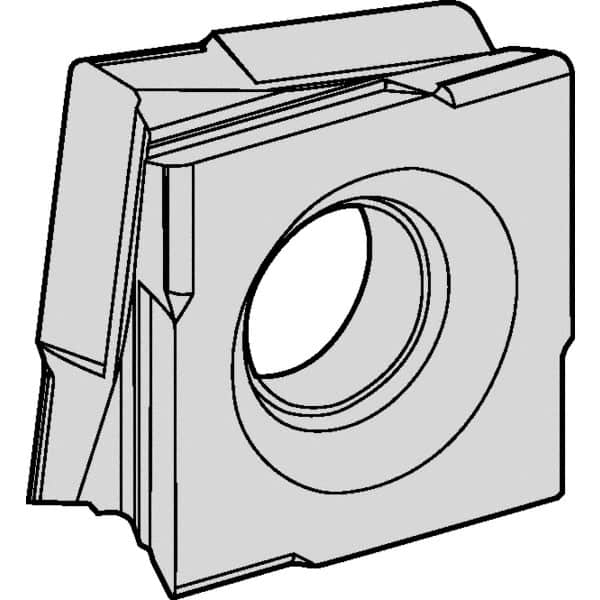

Kennametal - C8FIX120503 MP Grade KCP25 Carbide Turning Insert - TiCN/Al2O3 Finish, Irregular, 0.217 Thick, 0.0118" Corner Radius
Item #: 46861597
Brand: Kennametal
Model #: 4054403
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | C8FIX |
| Insert Size | 120503 |
| Material | Carbide |
| Length (mm) | 7.29 |
| Length (Decimal Inch) | 0.2870 |
| Thickness (Decimal Inch) | 0.2170 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Manufacturer's Grade | KCP25 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | MP |
| Hole Diameter (mm) | 5.10 |
| Hole Diameter (Decimal Inch) | 0.2007 |
| ISO Number | C8FIX120503LMP |
| Rake | Positive |
| Rake Angle | 18 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | Fix-Perfect |
| Insert Holding Method | Pin |
| Shape | Irregular |
