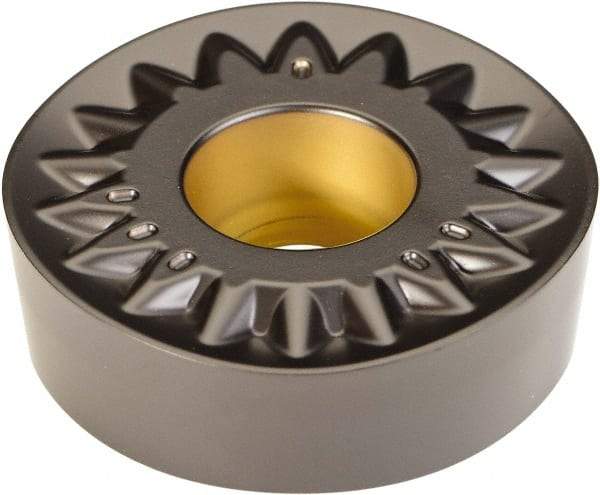

Kennametal - RCMX3209M0 RU Grade KCK20 Carbide Turning Insert - TiCN/Al2O3 Finish, Round, 32mm Inscr Circle, 3/8" Thick
Item #: 46860391
Brand: Kennametal
Model #: 4035586
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Insert Size | 3209M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 32.00 |
| Inscribed Circle (Decimal Inch) | 1.2598 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Manufacturer's Grade | KCK20 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | RU |
| Hole Diameter (mm) | 9.78 |
| Hole Diameter (Decimal Inch) | 0.3850 |
| ISO Number | RCMX3209M0RU |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | Fix-Perfect |
| Insert Holding Method | Screw |
| Shape | Round |
