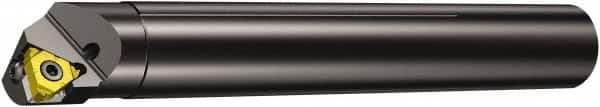

Sandvik Coromant - Internal Thread, Left Hand Cut, 1" Shank Width x 1" Shank Height Indexable Threading Toolholder - 12" OAL, Various Insert Compatibility, 266.LL Toolholder, Series CoroThread 266
Item #: 46854014
Brand: Sandvik Coromant
Model #: 5757723
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 12.0000 |
| Overall Length (Inch) | 12 |
| Insert Compatibility | A392.369HMD-40 26 098; A392.369HMD-50 26 096; A392.410HMD-100 26 090; A392.410HMD-63 26 100; A392.417HMD-63 26 100; A392.455HMD-40 26 099; A392.455HMD-50 26 078; A392.45HMS-50 26 038; A392.55HMS-50 26 038; C6-A391.HMD-26 080 |
| Series | CoroThread 266 |
| Toolholder Style | 266.LL |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 16.99 |
| Center to Cutting Edge (Decimal Inch) | 0.6690 |
| Neck Diameter (Decimal Inch) | 1.0000 |
| Head Length (Decimal Inch) | 1.3410 |
| Shank Length (Decimal Inch) | 10.6591 |
| Maximum Bore Depth (Decimal Inch) | 3.0000 |
| Minimum Bore Diameter (Decimal Inch) | 1.2600 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Pitch Range | 8 - 4 |
| Toolholder Material | Steel |
