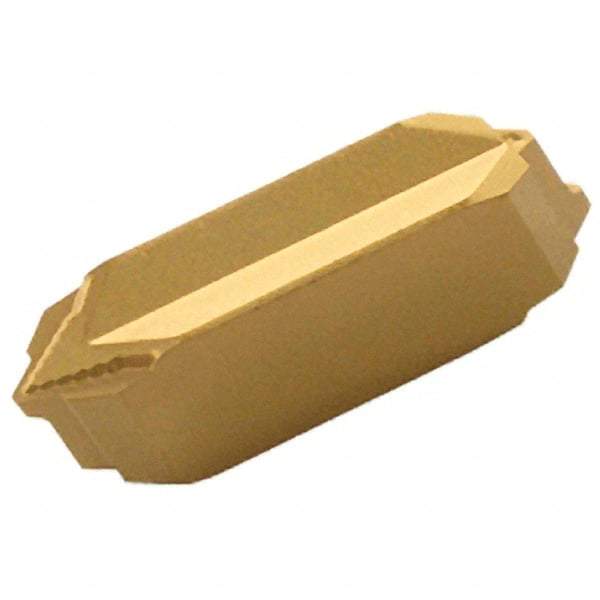

Iscar - TIP4P11 Grade IC08, External BSPT Threading Insert - 11 TPI Ext Pitch, Right Hand Insert, Uncoated, Carbide
Item #: 46699625
Brand: Iscar
Model #: 6403438
Exact Tooling IR#: 04
Features and Benefits
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TIP |
| Insert Size | 4P11 |
| Thread Type | External |
| Cutting Direction | Neutral |
| Insert Hand | Right Hand |
| Thread Standard | BSPT |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC08 |
| External Pitch/TPI | 11 TPI |
| Coating | Uncoated |
| Material | Carbide |
| Coating Process | Uncoated |
| ISO Number | TIP 4P11-BSPT |
| Corner Radius (mm) | 0.28 |
| Corner Radius (Decimal Inch) | 0.0110 |
| Width of Cutting Tip (mm) | 4.00 |
| Width of Cutting Tip (Decimal Inch) | 0.1570 |
| Included Angle of Threading Tip | 55 |
| Manufacturers Catalog Number | 6403438 |
