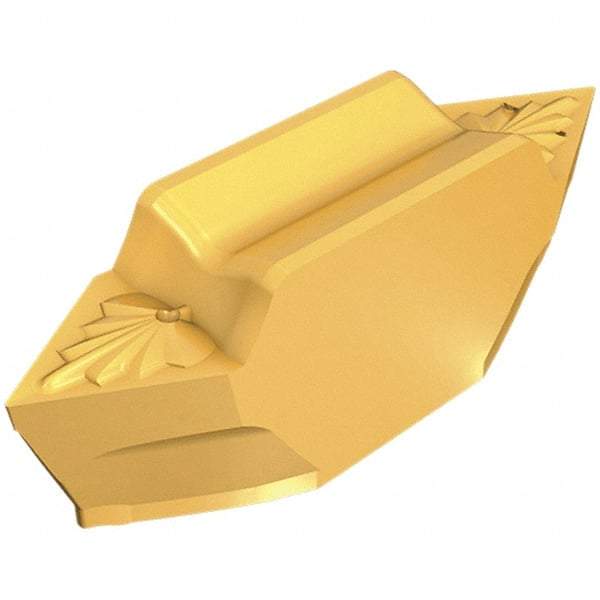

Iscar - GEPI2 Grade IC08, Internal/External Partial Profile 55° Threading Insert - Neutral Insert, Uncoated, Carbide
Item #: 46699617
Brand: Iscar
Model #: 6403394
Exact Tooling IR#: 04
Features and Benefits
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GEPI |
| Insert Size | 2 |
| Thread Type | Internal/External |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Thread Standard | Partial Profile 55 Degrees |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC08 |
| Coating | Uncoated |
| Material | Carbide |
| Coating Process | Uncoated |
| ISO Number | GEPI 2.5-WT0.05 |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Width of Cutting Tip (mm) | 2.50 |
| Width of Cutting Tip (Decimal Inch) | 0.0980 |
| Manufacturers Catalog Number | 6403394 |
