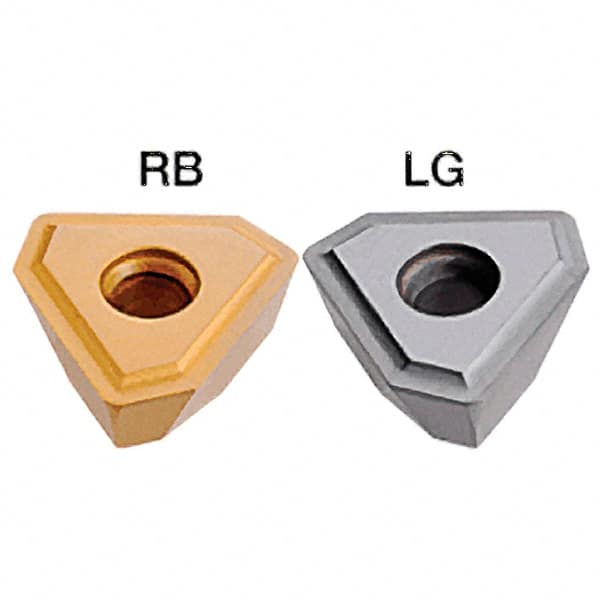

Iscar - TPMX2807 DT Grade IC908 Carbide Indexable Drill Insert - TiAlN Finish, Triangle, 17mm Inscribed Circle
Item #: 46691127
Brand: Iscar
Model #: 4801991
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | TPMX |
| Insert Size | 2807 |
| Material | Carbide |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Inscribed Circle (mm) | 17.00 |
| Inscribed Circle (Decimal Inch) | 0.6690 |
| Thickness (mm) | 7.50 |
| Thickness (Decimal Inch) | 0.2950 |
| Corner Radius (mm) | 1.60 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Shape | Triangle |
| Coating | TiAlN |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | DT |
