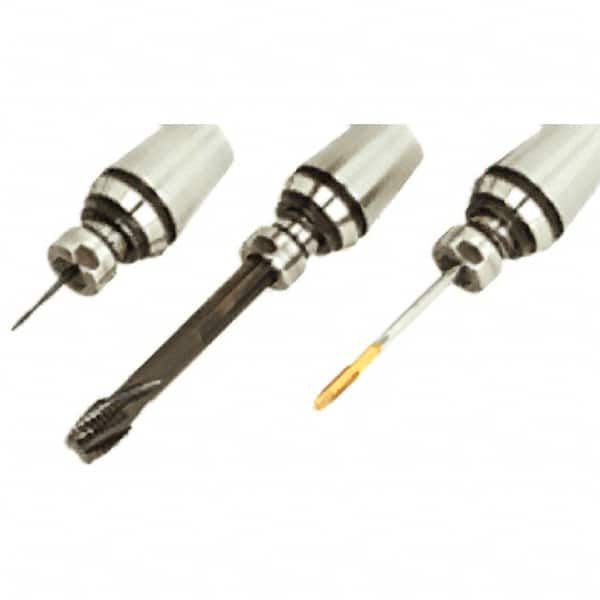

Iscar - Metric ER32 Taper Shank Tension & Compression Tapping Chuck - M4 Max Tap Capacity, 20mm Projection
Item #: 46686564
Brand: Iscar
Model #: 4548092
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Taper Shank |
| Taper Size | ER32 |
| Modular Connection Size | Metric |
| Maximum Tap Capacity (mm) | M4 |
| Projection (mm) | 20.00 |
| Hole Diameter (mm) | 5.00 |
| Collet System | ER Tap |
| Collet Series | ER32 |
| Overall Length (mm) | 60.00 |
