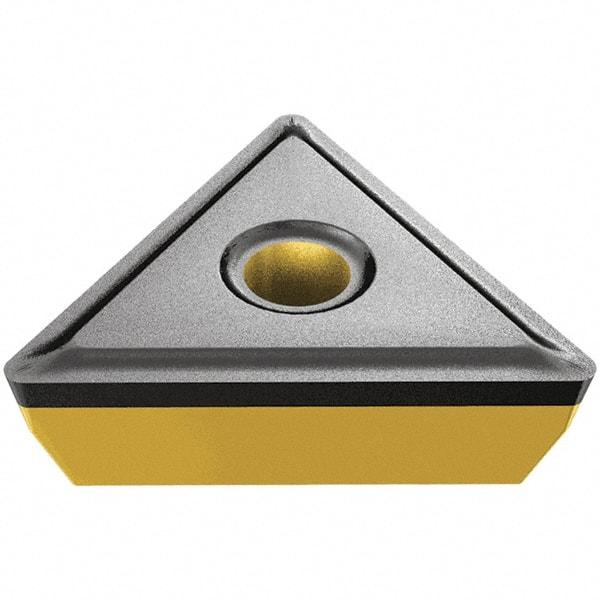

Iscar - TPMR221 Grade IC830 Carbide Turning Insert - TiAlN/AlTiN/TiN Finish, 60° Triangle, 6.35mm Inscr Circle, 3.18mm Thick, 0.4mm Corner Radius
Item #: 46676193
Brand: Iscar
Model #: 5568591
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMR |
| Insert Size | 221 |
| Material | Carbide |
| Length (mm) | 11.00 |
| Length (Decimal Inch) | 0.4330 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| ISO Number | TPMR 221 |
| Relief Angle | 11 |
| Proprietary Coating Designation | SumoTec |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5568591 |
| Primary Workpiece Material | M; P; S |
| Secondary Workpiece Material | None |
| Included Angle | 60 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Multi Use Application | Turning |
| Shape | Triangle |
