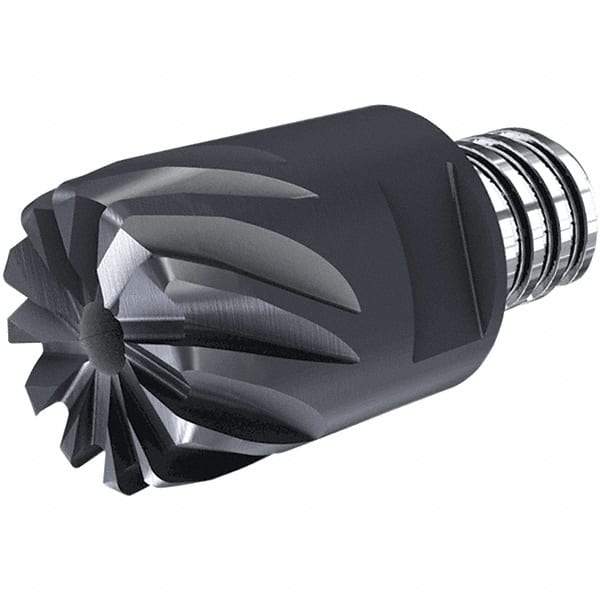

Iscar - MM ET CF Grade IC908 Carbide End Milling Tip Insert - TiAlN Finish, 12 Flutes, 15mm Cutting Diam, 3.5mm Depth of Cut, 20.5mm Extension, 0.039" Cnr Rad
Item #: 46674578
Brand: Iscar
Model #: 5623450
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM ET |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 15.00 |
| Cutting Diameter (Decimal Inch) | 0.5910 |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Depth of Cut (mm) | 3.50 |
| Depth of Cut (Decimal Inch) | 0.1380 |
| Number of Flutes | 12 |
| Coating | TiAlN |
| Milling Tip Full Description | Chatter Free Finishing |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0390 |
| Coating Process | PVD |
| Chipbreaker | CF |
| Extension From Holder (mm) | 20.50 |
| Extension From Holder (Decimal Inch) | 0.8070 |
| Thread Size | T10 |
| Style | MM ET15/8H4R10CF-12T10H |
| Manufacturers Catalog Number | MM ET15/8H4R10CF-12T10H |
