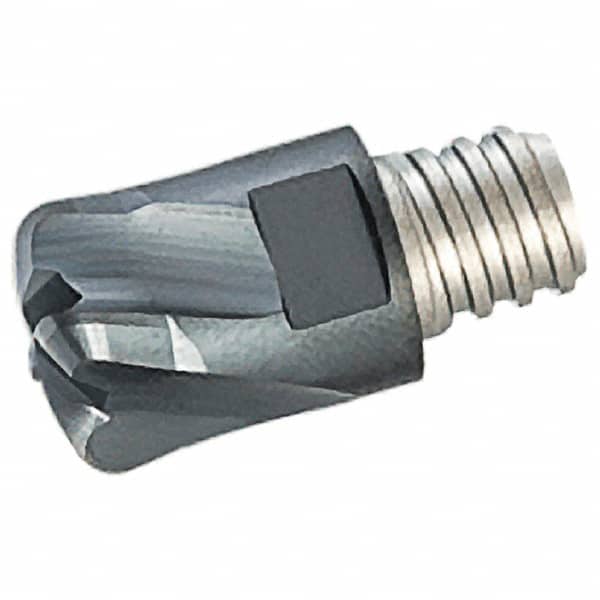

Iscar - MM EFF Grade IC903 Carbide High Feed Milling Tip Insert - TiAlN Finish, 6 Flutes, 10mm Cutting Diam, 0.45mm Depth of Cut, 10mm Extension
Item #: 46673380
Brand: Iscar
Model #: 5668259
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM EFF |
| Milling Tip Type | High Feed |
| Material | Carbide |
| Cutting Diameter (mm) | 10.00 |
| Cutting Diameter (Decimal Inch) | 0.3940 |
| Material Grade | Ultra Fine Grain |
| Manufacturer's Grade | IC903 |
| Depth of Cut (mm) | 0.45 |
| Depth of Cut (Decimal Inch) | 0.0180 |
| Number of Flutes | 6 |
| Coating | TiAlN |
| Coating Process | PVD |
| Extension From Holder (mm) | 10.00 |
| Extension From Holder (Decimal Inch) | 0.3940 |
| Thread Size | T06 |
| Style | MM EFF100T2R1.0-6T06H 903 |
| Manufacturers Catalog Number | MM EFF100T2R1.0-6T06H 903 |
